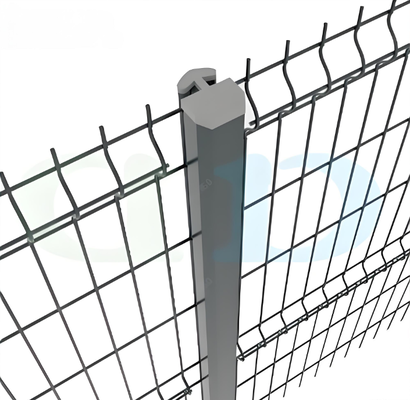

PVC Coating 3D Bending Curved V Mesh Security Fencing For Outdoor Area
Dettagli
| Nome del prodotto | Recinzione a maglia 3D | Materiale | Q195 |
|---|---|---|---|
| Luogo di origine | Hebei, Cina | Utilizzo | Recinzione del giardino |
| servizio | Modellazione 3D | Finitura del telaio | Rivestito in PVC |
| Colore | Verde RAL6005 | Diametro del filo | 5,0 mm |
| Dimensione della maglia | 50x200mm | Dimensioni del pannello | 1.8*3m, 2.0*3m |
| Pacchetto | Pallet | Forma della posta | Colpo di pesca, colpo quadrato. |
| Evidenziare | PVC coated V mesh security fence,3D bending curved security fencing,outdoor V mesh fence with warranty |
||
Descrizione di prodotto
PVC Coating 3D Bending Curved V Mesh Security Fencing For Outdoor Area
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | 3D wire mesh fence |
| Material | Q195 |
| Place of Origin | Hebei, China |
| Usage | Backyard fence |
| Service | 3D modeling |
| Frame Finishing | PVC coated |
| Color | Green RAL6005 |
| Wire Diameter | 5.0mm |
| Mesh Size | 50x200mm |
| Panel Size | 1.8*3m, 2.0*3m |
| Package | Pallet |
| Post Shape | Peach post, Square post |
Product Description
3D Curved Panel Fencecould be 4 curvy,3 curvy,2 curvy according to the height of the mesh fence. Height from 1030 to 2400mm ,width from 2000 to 2500mm.The wire diameter is usually from 4mm to 5mm, which welded at each intersection.

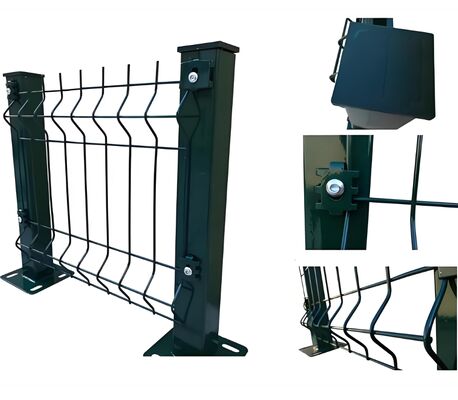

The panels have vertical barbs of 20mm-30mm at the top. The mesh opening are 50mm x 100mm, 50mm x 150mm, 50mm x 200mm or 75mm x 150mm, 75mm x 200mm etc. Specifications can be customized. The panels are secured laterally on the posts with specialized fixing made out of metal (security clips).
Outdoor fence panel can used for roads, freight, yards, sport fields, airports, garden, raising livestock for protection and public districted. We can also customize to your requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Wire diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| H x W (mm) | Height from 0.63-2.4mm, width 2m, 2.5m, 3.0m |
| Opening (mm) | 50x100mm, 50x150mm, 50x200mm, 75x150mm, etc. |
| PVC coated thickness (mm) | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50x70x1.2mm, 70x100x1.2mm, post height goes with panel height |
| Surface treatment | Wire mesh panel: galvanized + PVC coated, gal. + powder spraying Post: galvanized + powder spraying |
Key Features
- Prevent bask in anticorrosion: Hot dip galvanizing and powder coating, Service life 5-10 years
- Easy to install: The installation process requires only 2 people
- Beautiful appearance: The mesh surface is flat with higher perspective
Applications
Triangle bend fence is a type of welded wire mesh with V-shaped strengthen bending curves, made of high quality low carbon steel wire and galvanized wire, then hot dipped galvanized, powder coated or PVC coated. It looks modern and attractive.

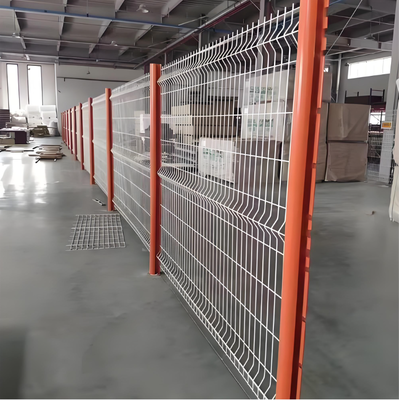

Mainly used for security protection in construction sites, residential buildings, sports fields, warehouses, highway or airport service areas, railway stations, etc.
Advantages
- Fence posts made with concrete pouring, with low cost
- High strength, good overall stability
- Color plastic coating/spraying layer has good anti-corrosion and decorative effect
- The fence perimeter has a harmony and good outlook
After-Sales Service
Our after-sales service starts immediately after signing the contract:
- We find the lowest freight cost for customers' reference
- Provide real production data and photos
- Help arrange shipment and customs clearance
- Provide installation, maintenance and repair instructions
Frequently Asked Questions
Can you express a free sample first?
Yes. Welcome to chat with our sales for more details. We always express the sample with charged.
What is your delivery time?
It is about 15 to 25 days after receiving your 30% deposit.
Is that a real factory?
Yes. We have manufactured and exported wire mesh since 2013.
What is the payment terms?
There is available by T/T or by Irrevocable L/C at sight.
How can I get the quotation?
You can contact us as follows.
Available Colors
Packing & Delivery
- Fence panel: plastic film / wooden case + metal/wooden pallet
- Fence post: plastic bag + metal/wooden pallet (with rainhat installed)
- Fence accessories: plastic bag + carton box (clips & screws)
Accessories come in different types and materials and can be selected as needed. No special attachment for piping installation, use propulsion device, easy to grip, fast, reduce cost.
